Things to know before buying ！！！
1. THINKSCAN MAX 2 software has been upgraded. No registration is required ！
2. It cannot be bound to a THINKCAR account, you can use it after turning it on!
3. THINKSCAN MAX 2 there is no mall function
4. THINKSCAN MAX 2 is equipped with the VCI connector of THINKDIAG MINI 2
European Version VS. Global Version
* The European version has IP restrictions and is only available for European addresses.
* Global version: No IP restrictions, for customers from all over the world.
* Please note: European version and global version of THINKSCAN MAX 2 have the same diagnostic function, packaging, appearance and accessories, please don’t worry.
Money-Saving Tips for Customers in European Member States
You can place your order from China warehouse and we will ship your order from EU warehouse. Fast shipping and save money. And you can also buy the EU version, it can be used in the EU.
(This way is cheaper and faster than ordering directly from EU warehouse)
Follow Store, Add this link to cart and your wish list, you will get gifts.
Each of our warehouses has different inventory, so gifts are also a little different.
* Shipping from the CN warehouse, You will get 1Pcs brake fluid pen and 1pcs bluetooth elm327 as gifts.
* Shipping from the RU/ FR/ PL/ ES/ CZ/ DE warehouse, you will get 1pcs brake fluid pen as gift.
* Shipping from the US/ UK warehouse, there is no gift.
100% Original and High Quality.
* We are the official authorized store of THINKCAR, 100% Original and High Quality.
* We have professional technical team, Provding 5 years warranty for this items and lifetime technical service.

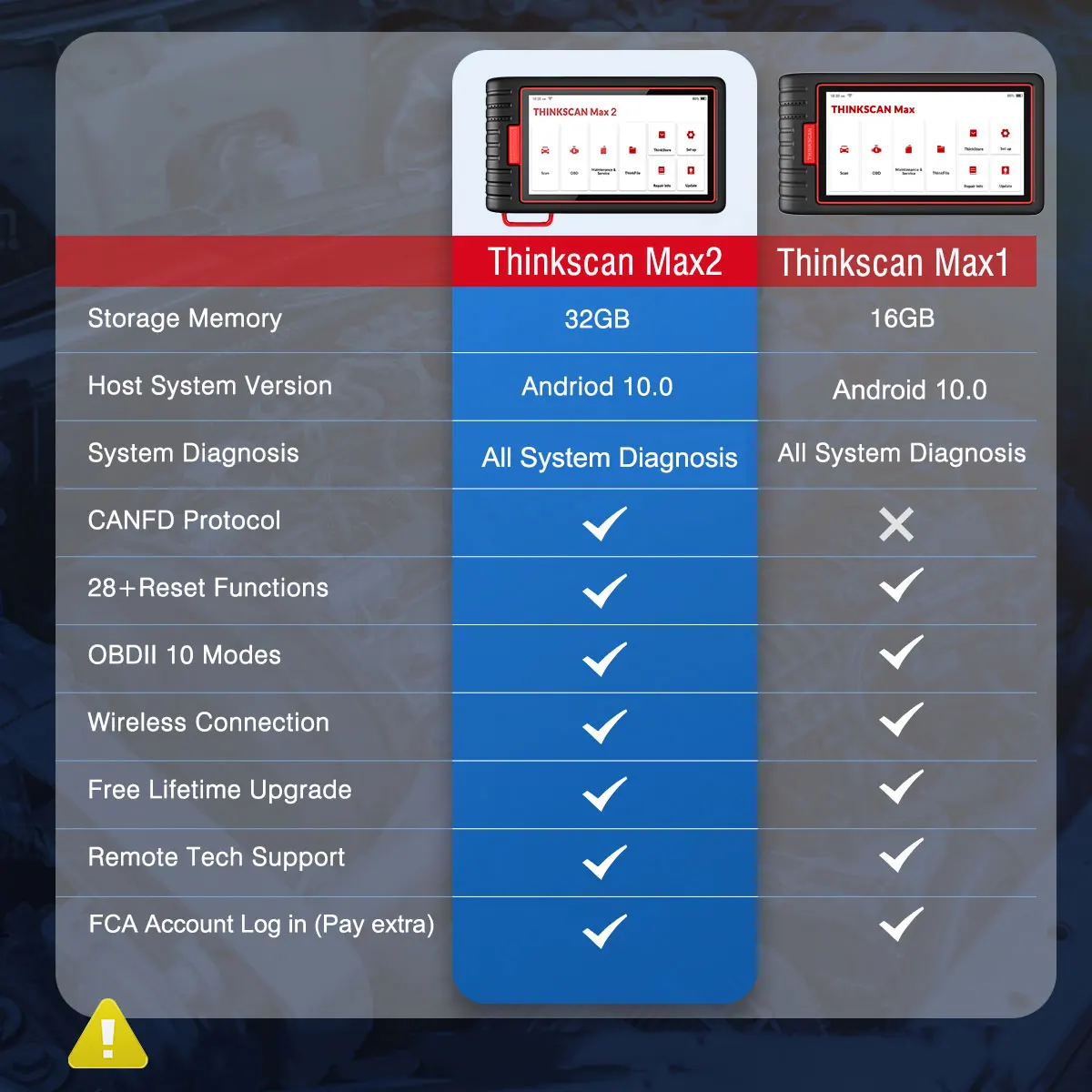

THINKSCAN MAX 2 VS. THINKSCAN MAX
* THINKSCAN MAX 2 adds CAN FD protocol on the basis of THINKSCAN MAX to support more models.
* THINKSCAN MAX 2 has 32G memory, which solves the problem of insufficient memory of THINKSCAN MAX 16G

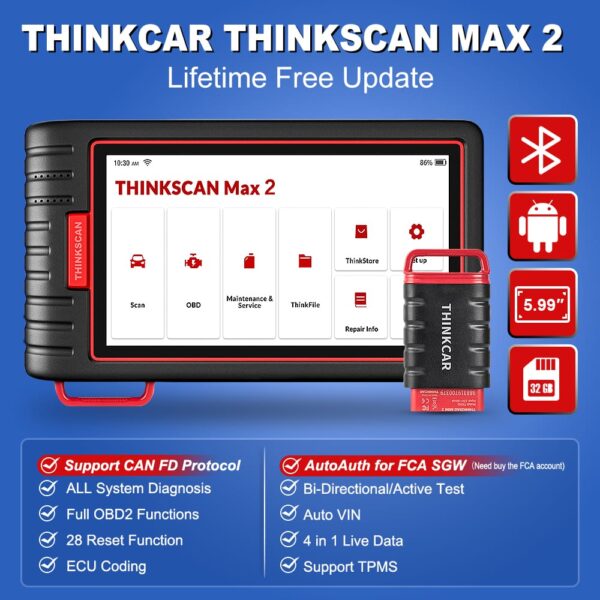

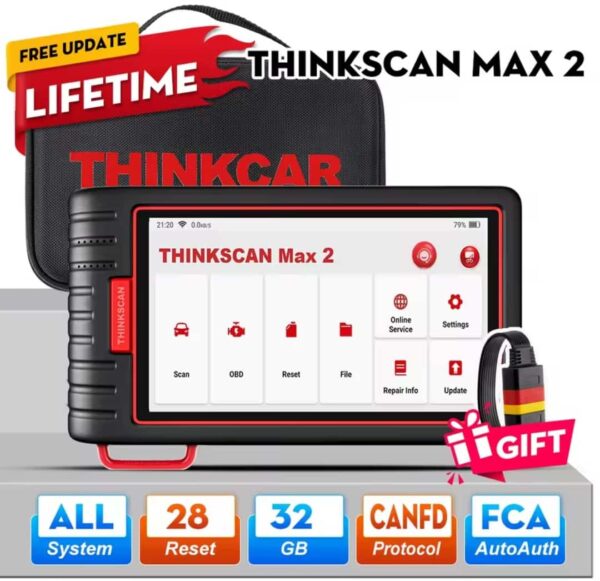

2025 New THINKCAR THINKSCAN MAX 2, 5.99inch Android 10 All Systems Automotive Diagnostic Tool, support CANFD For GM, 28 Resets, All OBD Function Car OBD2 Scanner, Auto Vin Scan, Lifetime Free Update, FCA account log in (Pay extra), 2GB + 32GB, 3150mAh Battery
THINKSCAN Max 2, one of the diagnostic products launched by THINKCAR TECH INC, isthe highest-level OBD product of the THINK series for DIY users. Equipped with Android operating system, it features powerful functions and can be updated online. Moreover, full communication protocols make it cover a wider range of vehicle models.
Through the simple Bluetooth communication between diagnostic dongle and the hostcomputer, it achieves full car model and full system vehicle trouble diagnosis,whichinclude Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.
Autoauth for FCA SGW (Need to pay extra)
Use the latest software update function AutoAuth to provide diagnosis, making the diagnostics more secure.
Applicable to FCA vehicles (for Chrysler, for Dodge, for Fiat, etc. after 2017) equipped with a security gateway module (SGW).

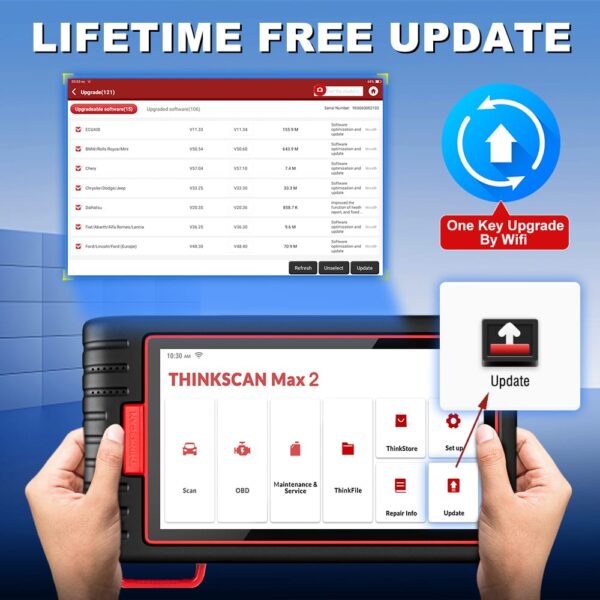

THINKSCAN MAX 2 support one-key Lifetime Free Update via WiFi
* Thinkscan max 2 support lifetime Free Update via WiFi
(including all system diagnostic functions, OBD2 functions, 28 reset function lifetime free updates)
THINKSCAN MAX 2 support 17 Languages
English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Korean, Swedish, Dutch, Traditional Chinese
THINKCAR THINKSCAN 2 supports CANFD protocol, supports more cars.
ThinkScan MAX 2 automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
Support 99% of all car models.
Engines/ Auto Transmission/Airbags/ Immobilizer/ Key Coding/ ABS/ Cruise Control/ Instruments/ Self Leveling Suspension systems/
Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/ 4WD System/ Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti Theft/ Soft Top/ Headlamp Leveling/ Central Locking/ Automatic Clutch/ DPF Reset/ Electric Windows/ Plip Programming/ Heated Rear Window/ Xenon Headlights/ Wash Wipe/ Fuel Burning Heater/ Transfer Box/ Seat Memory/ Oil Life Service Reset/ Sliding Doors/ Electronic Throttle/ Navigation System/ Rollover Sensor/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Electronic Parking Brake/ Clutch Electronics etc. (Great for car repair shops and mechanics to improve business)
It supports the detailed Function :
–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition
With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:
For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.
For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.
For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.
ThinkScan MAX 2 has 28 service functions which allows you to reset various systems in your vehicle. support more function than other scanners priced similarly
1. Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance. Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.
2. Elec. Throttle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume.
3. SAS – Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.
4. Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.
5. ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer, ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.
6. Brake Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
7. DPF Regeneration
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
8. Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computer to more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started. The diagnostic device detects the DTC P1336′ gear not learned’. In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC ‘gear not learned” is present, gear learning must be performed.
9. IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote contro l keys to normally use the car. When the ignition switch key, ignition switch, combined instrument panel, ECu, BCM, or remote control battery is replaced, anti-theft key matching must be performed.
10. Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
11. TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.
12. Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.
13. AFS Reset
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
14. A/ T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.
15. Sunroof Initialization
This function can set the sunroof lock off, closed when it rains, sliding/ tilting sunroof memory function, temperature threshold outside the car etc.
16. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
17 ODO Reset
a) ODo reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual mileage.
b) Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.
18 Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collides and the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicator lights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable, it is required that all new accessories must be replaced, but after performing this function, the data of the airbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and the airbag computer can continue to use.
19. Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal.
20. A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
21. Stop/ Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU (provided that the vehicle has a hidden function and supported by hardware).
22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECu.
23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.
24. Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
25 Coolant Bleeding ( Supports 5 Brands )
Use this function to activate the electronic water pump before venting the cooling system.
26. Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
27. Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.
28. Language Change
This function is used to change the system language of the vehicle central control panel.
Full OBD Function Lifetime Free
1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream: Reads and displays live ECU/ PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
The other Function of THINKCAR THINKSCAN Max 2
1. Auto Vin & AutoScan
This OBD2 scanner uses AutoVIN technology, to provide quick and accurate car identification in one touch, without the manual input of vehicle make, model, and year data. After that, this scan tool will lead to diagnostics where you can choose the systems to scan.
2. One-Key Wifi Update
no need to update on computer. Just click update after connecting wifi, then all softwares will start to update. (you will enjoy lifetime update through one-key wifi update, which is rare in diagnostic market as other diagnostic tools only offer one year free update.)
3. One-Key Screenshot
use the feature to capture and save the diagnostic process for you rather than take pictures by telephone.
4. One-Key Screen Recorder
you will hardly find this feature on other scanners. This is one of the biggest advantage of thinktool Mini, which will be a big surprise to those who like recording video of the whole diagnostic process. With this feature, you don’t need to hand up a telphone during the diagnosis.
Wide vehicle coverage and is compatible with 90% of all car models from the US, Europe, Asia and China.
For American
for Buick, for Chrysler, for Cadillac, for Chevrolet, for Doge, for AU Ford, for Brazil Fiat, for Brazil GM, for Ford, for GM, for Jeep, for Lincoln, for SGM
For European
for Aston Martin, for Audi, for Alfa Remeo, for Abarth, for BMW, for Bentley, for Bugatti, for Citroen, for DR, for Dacia, for EU Ford, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for Land Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Mini, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ
For Asian
For Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for Toyota, for Tlisuzu, for United Pakistan
For China Car
For BAIC SENOVA, For BAIC WEIWANG, For BAIC, For BRILLIANCE, For BYD, For CHANGAN, For CHANGANFORD, For CHANGHE, For CHBUICK, For CHCADILLAC, For CHCHEVROLET, For CHERY, For CHSUZUKI, For DFCITROEN, For DFNISSAN, For DFPEUGEOT, For DFSK, For ECUAID, For FAW(TIANJIN), For FOTON, For GONOW, For GWM, For HAFEI, For HAIMA, For HCBMW, For HONDA(GAC), For JAC, For JINLONG, For JMC, For JOYLONG, For LIFAN, For LUXGEN, For LYNKCO, For MAXUS, For MG(SAIC), For MITSUBISHI(GAC), For NJFIAT, For POLARSUN, For QOROS, For SGMW, For TOYOTA (CHINA), For XINKAI, For YQMAZDA, For ZOTYE, For ZX AUTO
THINKCAR ThinkScan Max 2 Two Ways Connect car
wireless diagnosis VS wire diagnosis
wireless diagnosis:thinktool mini + wireless connector
diagnostic distance: 5-10 m
wire diagnosis:scanner+ diagnostic cable
diagnostic distance: 1m
Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work. The diagnostic distance can be 5-10 m.
How do THINKCAR Thinkscan max 2 print?
Easy to Operate, Share the diagnosis report via email, then go to Print out !
Hardware Configuration of THINKCAR ThinkScan Max 2
Storage: 32G
Battery Capacity: 3150mAh/7.6V
Screen Size: 5.99 inches
Resolution: 720*1440 pixel
Working Voltage: 5V
Working Current: ≤2.5A
Working Environment: 14 °F ~122°F(-10°℃ ~50°C)
Storage Environment: -4 °F ~140°F(-20°℃~60°C)
Packing List of THINKSCAN MAX 2
1PC * THINKSCAN MAX 2 Host
1PC * EVG Storage Bag
1PC * VCI Dongle
1PC * Charging cable
1PC * Power adapter
1Pc * User Manual (multi-language）
