Name: ELM 327 Bluetooth V1.5
SKU: 847
Price: 300.00 ZAR
Availability: InStock

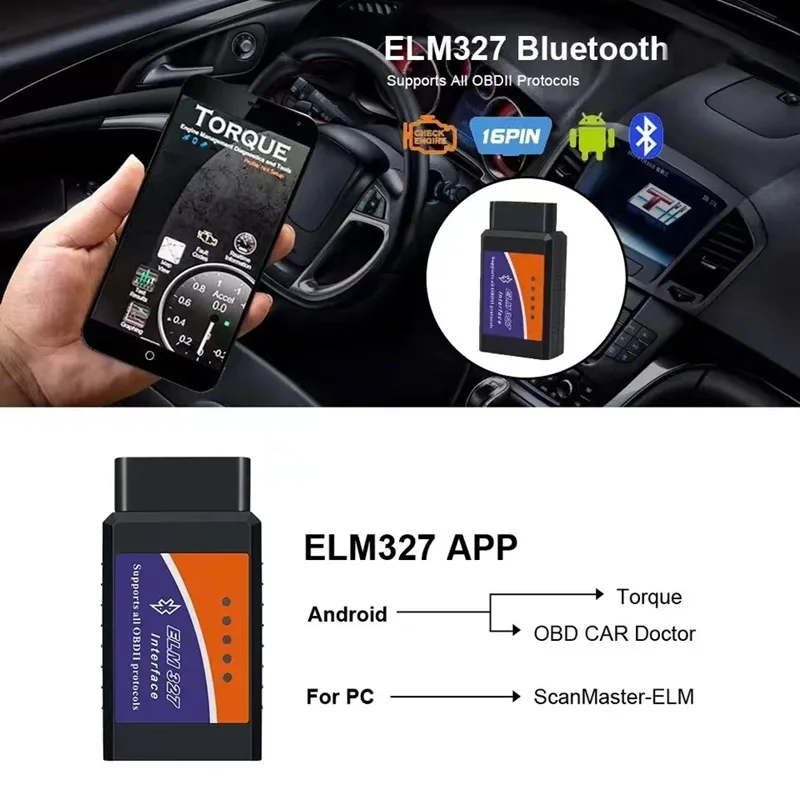

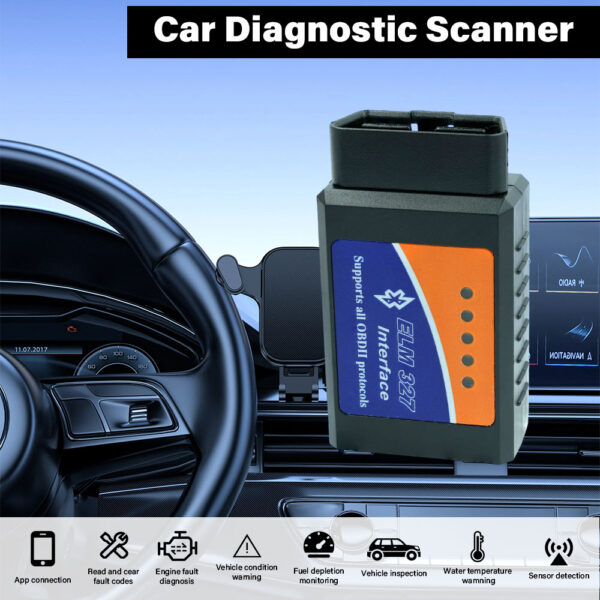

ELM 327 Bluetooth V1.5

The ELM 327 Bluetooth supports both android and iOs devices. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)., Clear trouble codes and turn off the MIL (‘Check Engine’ light), Display current sensor data, including:, Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages / associated short term fuel trims, Fuel System status and Fuel Pressure.

Description

report

Support System: IOS, Android, Windows

Working Voltage: 9v ~ 16v

Working Current: 35mA

Standby Current: 25mA

Operating temperature: -40℃~ 65℃

NOTICE：

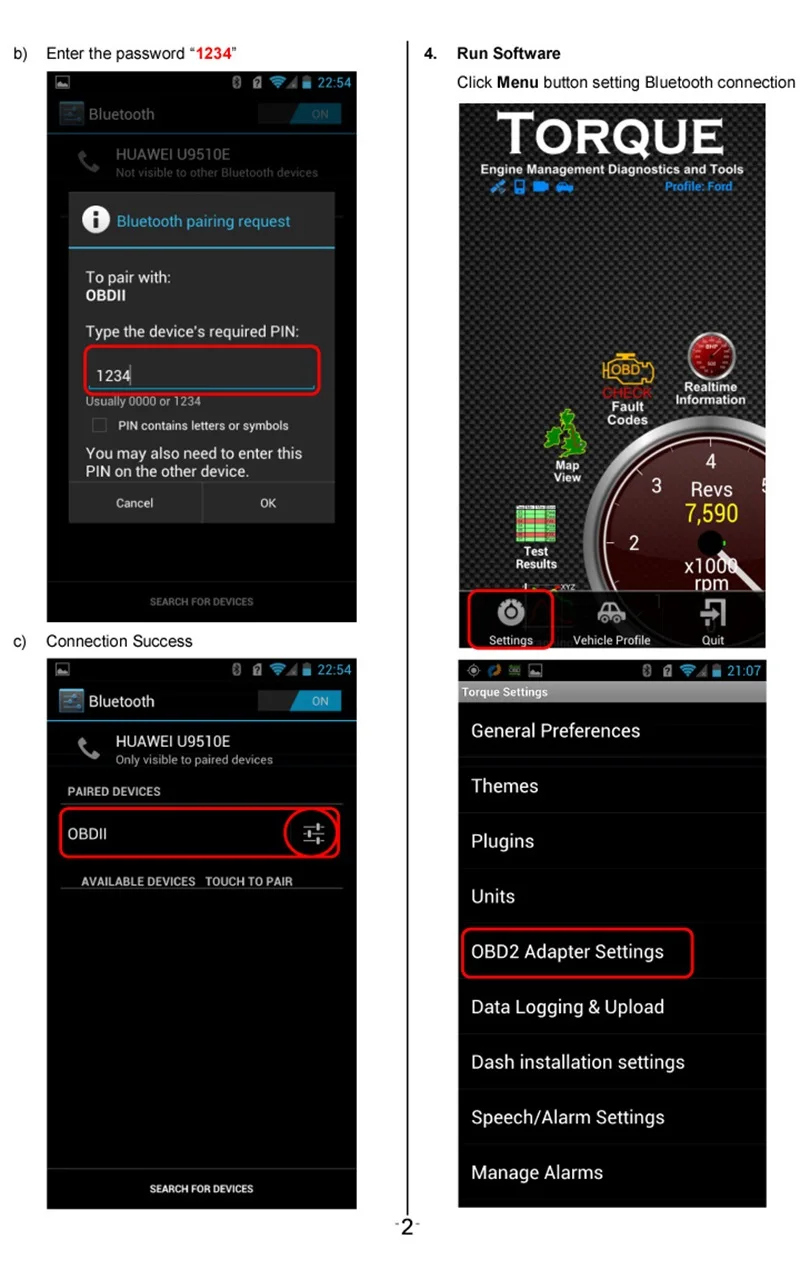

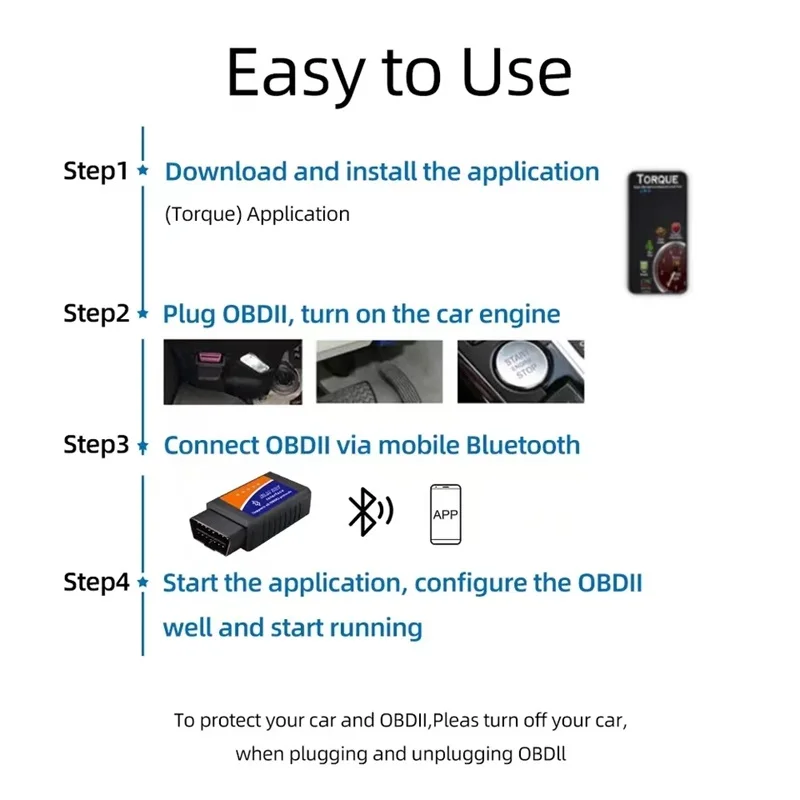

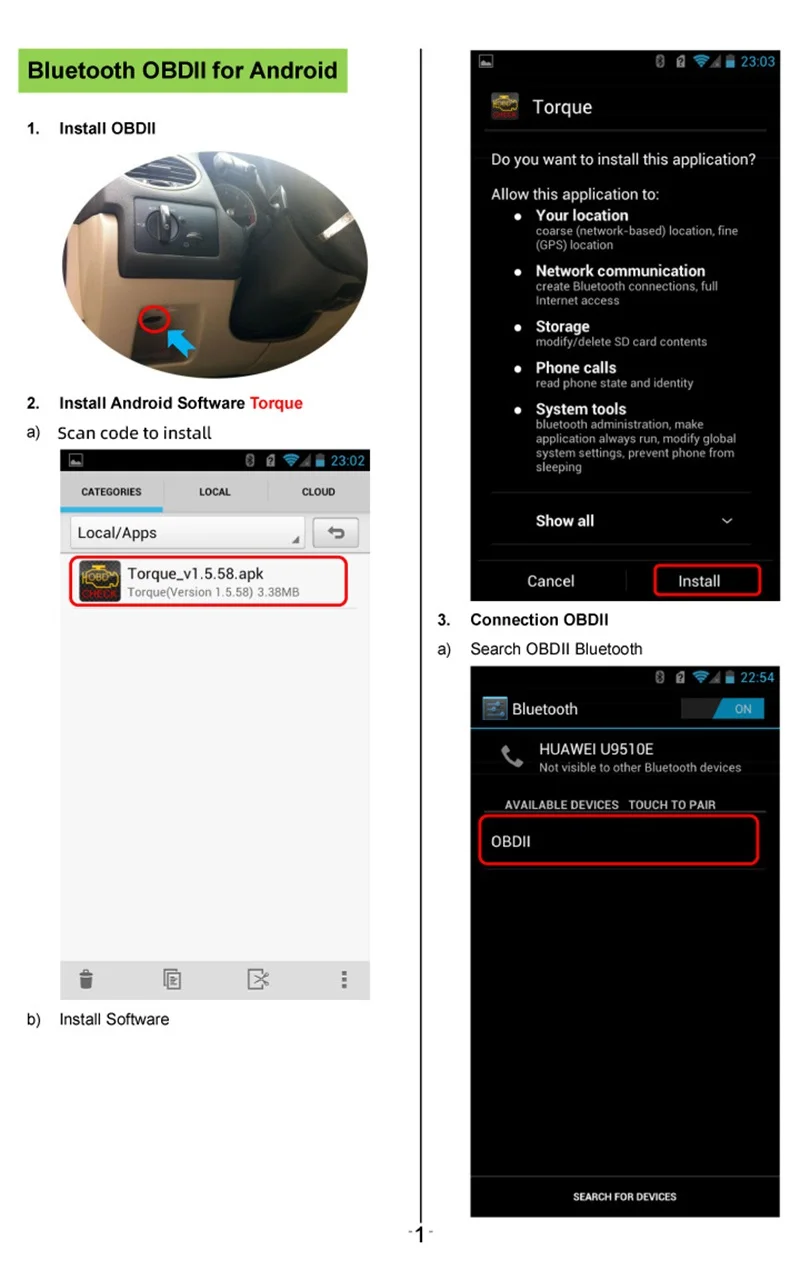

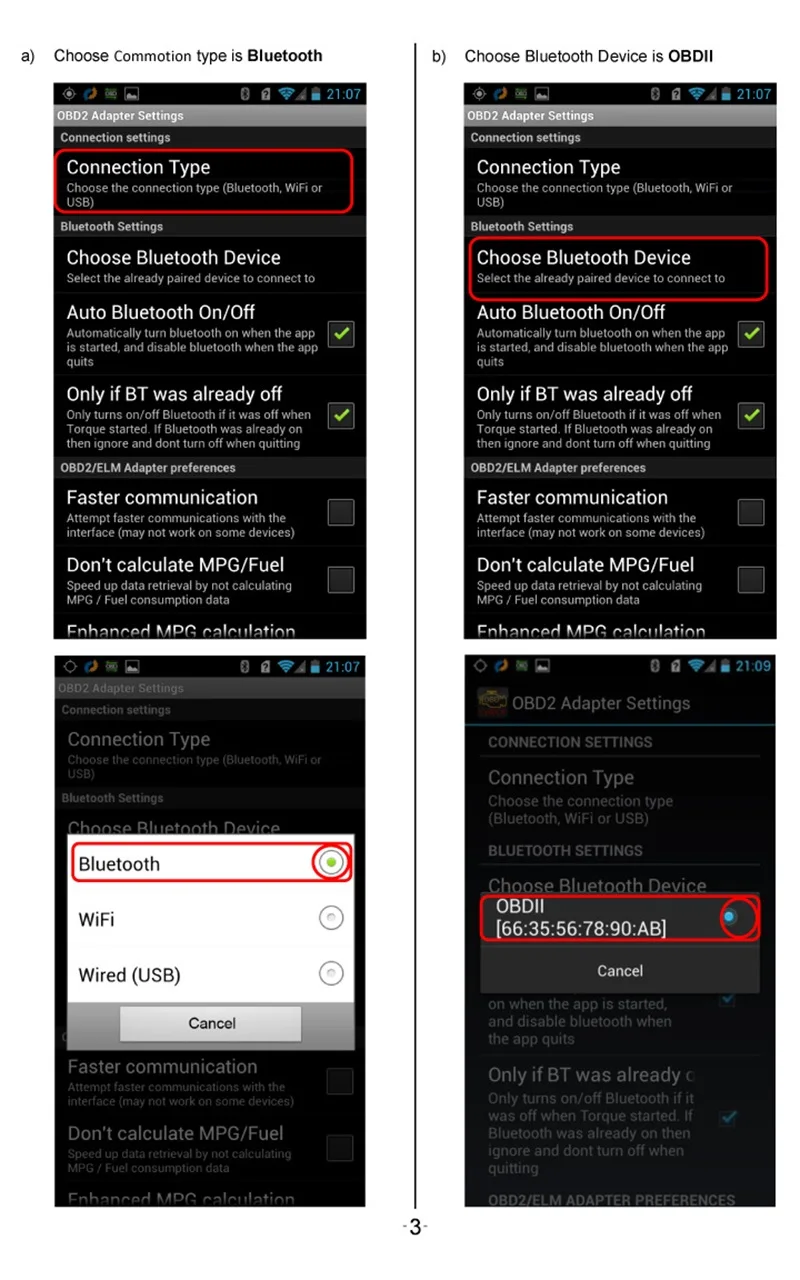

1. Please link Bluetooth through the APP

2. Please read the details carefully to view the usage instructions

Supported protocols:

1.ISO9141-2 (5 baud init, 10.4 kbaud)
2.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3.ISO14230-4 KWP (fast init, 10.4 Kbaud)
4.ISO15765-4 CAN (11bit ID, 500 Kbaud)
5.ISO15765-4 CAN (29bit ID, 500 Kbaud)
6.ISO15765-4 CAN (11bit ID, 250 Kbaud)
7.ISO15765-4 CAN (29bit ID, 250 Kbaud)

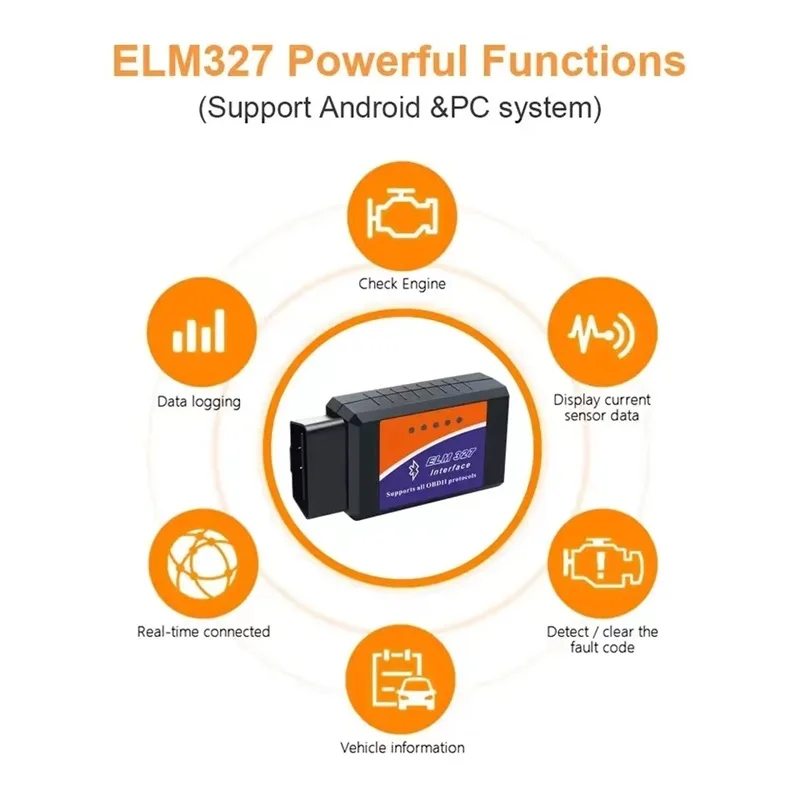

Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL (‘Check Engine’ light)

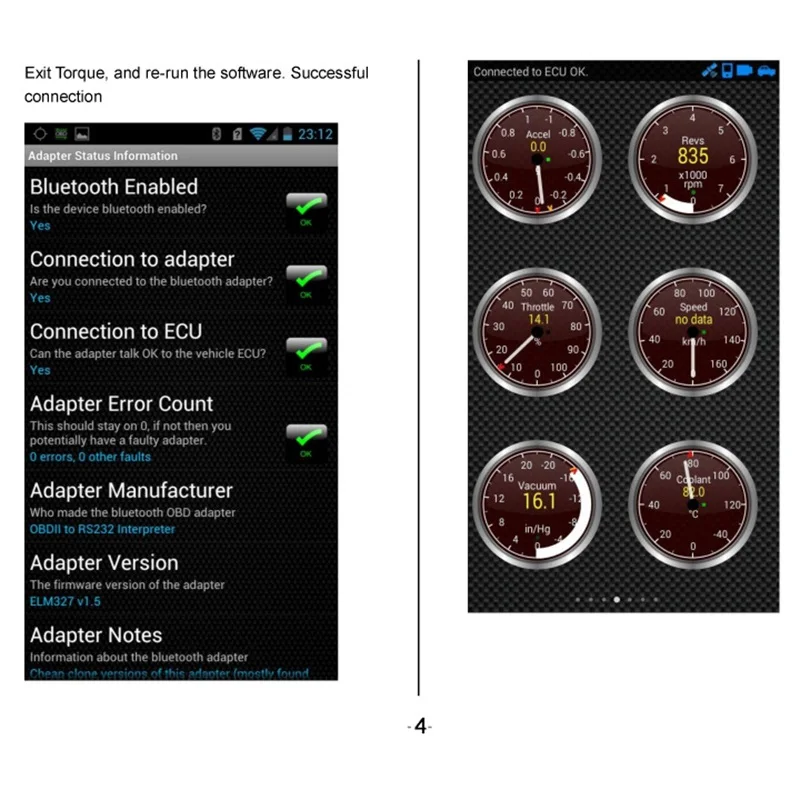

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature
